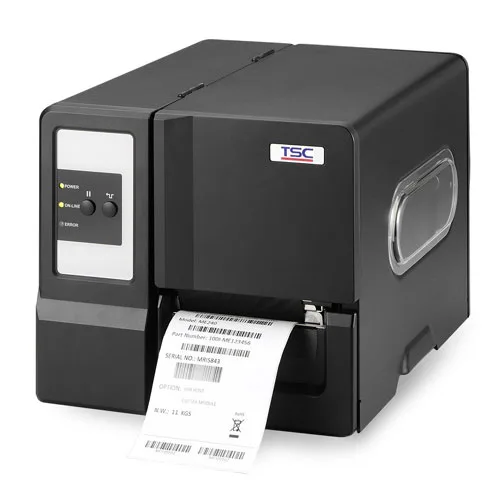

TSC ME240 Barcode Label Printer (ME240 Series) - 203 dpi direct thermal and thermal transfer printer, 4.09" print width. Economy industrial. Supplied with installation, labels, ribbons and service support by Mindware, Ne...
Send the availability form. If the product is in stock, we confirm our best price and bill it with a GST invoice.
Labels & ribbons for this printerFrom Mindware - any size, best prices
| Printing | |
|---|---|
| Resolution | 8 dots/mm (203 DPI) |
| Print method | Thermal Transfer & Direct Thermal |
| Max. print speed | 152 mm (6”)/second |
| Max. print width | 104 mm (4.09”) |
| Max. print length | 2,286 mm (90”) |
| Hardware | |
| Processor | 32-bit RISC CPU |
| Memory | 4 MB Flash memory; 8 MB SDRAM; SD Flash memory card reader for Flash memory expansion, up to 4 GB |
| Sensors | Gap transmissive sensor (position adjustable); Black mark reflective sensor (position adjustable); Ribbon end sensor; Head open sensor |
| Controls and display | Basic model without LCD; Advanced model with Graphic type, 128 x 64 pixel, with back light; 1 power switch, 2 buttons (Pause, Feed) - Basic model; 6 buttons (Menu, Pause, Feed, Up, Down, Select) - Advanced model |
| Real-time clock | Standard |
| Enclosure | Die-cast based print mechanism/Metal cover with large clear media view window |
| Connectivity | |
| Interfaces | RS-232; USB 2.0; Internal Ethernet, 10/100 Mbps (factory option); USB host, for scanner or PC keyboard (factory option); Centronics (factory option); Bluetooth (user option) |
| Labels and media | |
| Label roll capacity | 203.2 mm (8”) OD |
| Media type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) |
| Media width | 25.4 ~ 118 mm (1.0” ~ 4.6”) |
| Media thickness | 0.06 ~ 0.28 mm (2.36 ~ 11 mil) |
| Media core diameter | 25.4 mm ~ 76.2 mm (1” ~ 3”) |
| Label length | 5 ~ 2,286 mm (0.2” ~ 90”) |
| Ribbon | |
| Ribbon capacity | 450 m long, max. OD 81.3 mm, 1” core (ink coated outside) |
| Ribbon width | 40 mm ~ 110 mm (1.6” ~ 4.3”) |
| Software and fonts | |
| Printer languages | TSPL-EZ™ (Compatible to EPL, ZPL, ZPL II) |
| Internal fonts | 8 alpha-numeric bitmap fonts; Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| Barcodes | 1D bar code Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11, Logmars; 2D bar code PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Font and barcode rotation | 0, 90, 180, 270 degree |
| Size and power | |
| Dimensions | 286 mm (W) x 259 mm (H) x 434 mm (D); 11.26” (W) x 10.20” (H) x 17.09” (D) |
| Weight | 11 kg (24.25 lbs) |
| Power supply | Internal universal switching power supply; Input: AC 100-240V, 2.0A, 47-63Hz; Output: DC 24V, 3.3A, 80W |
| Environment and compliance | |
| Operating environment | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing; Storage: -40 ~ 60°C, 10 ~ 90% non-condensing |
| Safety regulation | FCC Class A, CE Class A, C-Tick Class A, UL, CUL, TÜV/Safety, CCC |
| Manufacturer warranty | Printer: 2 years; Print head: 25 km (1 million inches) or 12 months which comes first; Platen: 50 km (2 million inches) or 12 months which comes first |
| Options | |
| Factory options | Graphic type, 128 x 64 pixels LCD display; Internal Ethernet interface (10/100 Mbps); USB host, for scanner or PC keyboard; Centronics parallel interface |
| Dealer options | Peel-off module; Guillotine cutter (full cut) |
| User options | Bluetooth module (serial interface); KP-200 Plus keyboard display unit; KU-007 Plus programmable smart keyboard |
From the TSC datasheet. Specifications can change with the model version. Warranty terms for India are confirmed on your quotation.
