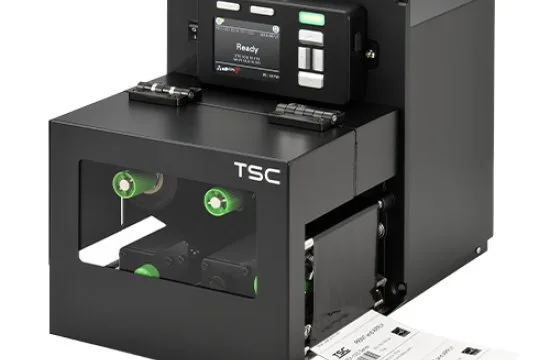

TSC PEX-1120 Print Engine (PEX-1000 Series) - 203 dpi direct thermal and thermal transfer printer, 4.09" print width. Print engine, left-hand. Supplied with installation, labels, ribbons and service support by Mindware...
Send the availability form. If the product is in stock, we confirm our best price and bill it with a GST invoice.
| Printing | |
|---|---|
| Resolution | 8 dots/mm (203 DPI) |
| Print method | Thermal Transfer & Direct Thermal |
| Max. print speed | 457 mm (18”)/second |
| Max. print width | 104 mm (4.09”) |
| Max. print length | 25,400 mm (1000”) |
| Hardware | |
| Processor | 32-bit RISC CPU |
| Memory | 512 MB Flash memory; 512 MB SDRAM; microSD Flash memory card slot for Flash memory expansion, up to 32 GB |
| Sensors | Gap transmissive sensor (position adjustable); Black mark reflective sensor (position adjustable); Ribbon encoder sensor; Ribbon end sensor; Head open sensor; Media cover open sensor |
| Controls and display | 3.5” color TFT display, 320 x 240 pixel; 1 status indicator; 6 buttons (Menu, Pause/Feed, Up, Down, Left, Right) |
| Real-time clock | Standard |
| Enclosure | Die-cast based print mechanism |
| Connectivity | |
| Interfaces | RS-232; USB 2.0; Internal Ethernet, 10/100 Mbps; USB host * 1 (front side), connecting USB storage device; GPIO + Centronics; Internal Bluetooth 4.0 (dealer option); 802.11 a/b/g/n wireless (dealer option) |
| Labels and media | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch (outside wound) |
| Media width | 20 ~ 114 mm (0.8” ~ 4.5”) |
| Media thickness | 0.076 ~ 0.305 mm (2.99 ~ 12.01 mil) |
| Label length | 5 ~ 25,400 mm (0.2” ~ 1,000”) |
| Ribbon | |
| Ribbon capacity | 600 m long, max. OD 90 mm, 1” core (ink coated outside or inside) |
| Ribbon width | 25.4 mm ~ 114.3 mm (1” ~ 4.5”) |
| Software and fonts | |
| Printer languages | TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) |
| Internal fonts | 8 alpha-numeric bitmap fonts; Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| Barcodes | 1D bar code Code 11, Code 39, Code 49, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Standard 2 of 5, Industrial 2 of 5, Interleave 2 of 5, EAN-8, EAN-13, EAN-14, EAN-128, ITF14, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, PLANET, POSTNET, RSS-Stacked, GS1 DataBar, China Post, Telepen, LOGMARS; 2D bar code PDF-417, Micro PDF 417, Maxicode, DataMatrix, QR code, Aztec, TLC 39, RSS |
| Font and barcode rotation | 0, 90, 180, 270 degree |
| Size and power | |
| Dimensions | 245 mm (W) x 300 mm (H) x 390 mm (D); 9.65” (W) x 11.81” (H) x 15.35” (D) |
| Weight | 13 kg (28.66 lbs) |
| Power supply | Internal universal switching power supply; Input: AC 100-240V, 4-2A, 50-60Hz; Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W |
| Environment and compliance | |
| Operating environment | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing; Storage: -40 ~ 60°C, 10 ~ 90% non-condensing |
| Safety regulation | BSMI, CE Class, FCC Class A; Comply with RoHS, WEEE |
| Manufacturer warranty | Printer: 2 years; Print head: 25 km (1 million inches) or 12 months which comes first; Platen: 50 km (2 million inches) or 12 months which comes first |
| Options | |
| Dealer options | 802.11 a/b/g/n wireless module; Internal Bluetooth 4.0 |
From the TSC datasheet. Specifications can change with the model version. Warranty terms for India are confirmed on your quotation.
