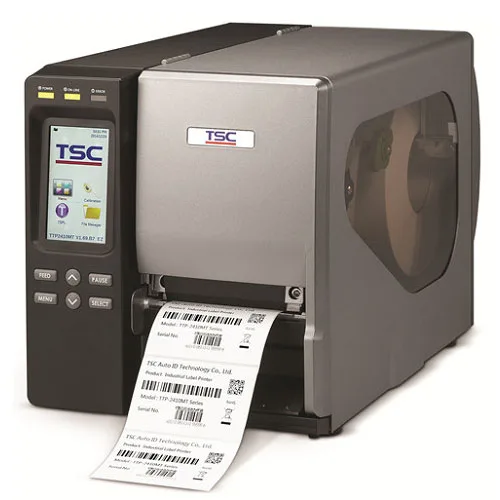

TSC TTP-2410MT Barcode Label Printer

Model: TSC TTP-2410MT Category: TSC Industrial Printers

TSC TTP-2410MT Barcode Label Printer (TTP-2410MT Series) - 203 dpi direct thermal and thermal transfer printer, 4.09" print width. Industrial with touch panel. Supplied with installation, labels, ribbons and service supp...

Best price on request

Send the availability form. If the product is in stock, we confirm our best price and bill it with a GST invoice.

WhatsApp Call
Download datasheet (PDF)
  • Genuine products with warranty support
  • Installation & service centre in Dwarka, Delhi
  • Pan-India delivery, GST invoice
Labels & ribbons for this printerFrom Mindware - any size, best prices

Full Specifications

Printing
Resolution8 dots/mm (203 DPI)
Print methodThermal Transfer & Direct Thermal
Max. print speed356 mm (14”)/second
Max. print width104 mm (4.09”)
Max. print length25,400 mm (1,000”)
Hardware
Processor32-bit RISC CPU
Memory128 MB Flash memory (factory option 512 MB); 128 MB SDRAM (factory option 256 MB); SD Flash memory card reader for Flash memory expansion, up to 32 GB
SensorsGap transmissive sensor (position adjustable); Black mark reflective sensor (position adjustable); Head open sensor; Ribbon encoder sensor; Ribbon end sensor
Controls and displayResistive Touch Screen, 16 bits Color, 480 x 272 pixels, with back lights; 1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select) & 3 LEDs
Real-time clockStandard
EnclosureDie-cast aluminum base and frame/ Metal cover with two hinges & large clear media view window
Connectivity
InterfacesRS-232; Centronics; USB 2.0; Internal Ethernet, 10/100 Mbps; USB host, for scanner or PC keyboard; GPIO (factory option); Bluetooth (user option); External 802.11 b/g/n Wireless (user option)
Labels and media
Label roll capacity208.3 mm (8.2”) OD
Media typeContinuous, die-cut, fan-fold, tag, notched, black mark, perforated, care label (outside wound)
Media width25.4 ~ 116 mm (1” ~ 4.5”)
Media thickness0.06 ~ 0.30 mm (2.36 ~ 11.81 mil)
Media core diameter25.4 ~ 76.2 mm (1” ~ 3”)
Label length5 ~ 25,400 mm (0.20” ~ 1,000”)
Ribbon
Ribbon capacity600 m long, max. OD 90 mm, 1” core (ink coated outside or inside)
Ribbon width25.4 mm ~ 114.3 mm (1” ~ 4.5”)
Software and fonts
Printer languagesTSPL-EZ™ (Compatible to EPL, ZPL, ZPL II)
Internal fonts8 alpha-numeric bitmap fonts; Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Barcodes1D bar code Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Logmars; 2D bar code PDF-417, Maxicode, DataMatrix, QR code, Aztech
Font and barcode rotation0, 90, 180, 270 degree
Size and power
Dimensions270 mm (W) x 308 mm (H) x 515 mm (D); 10.63” (W) x 12.13” (H) x 20.28” (D)
Weight15 kg (33.07 lbs)
Power supplyInternal switching power supply; Input: AC 100-240V, 2A, 50-60Hz; Output: DC 24V, 5A, 120W
Environment and compliance
Operating environmentOperation: 5 ~ 40°C, 20 ~ 85% non-condensing; Storage: -40 ~ 60°C, 5 ~ 90% non-condensing
Safety regulationFCC Class A, CE Class A, C-Tick Class A, UL, CUL, TÜV/Safety, CCC, CB
Manufacturer warrantyPrinter: 2 years; Print head: 25 km (1 million inches) or 12 months which comes first; Platen: 50 km (2 million inches) or 12 months which comes first
Options
Factory optionsGPIO interface; Mainboard with extended memory (512 MB Flash/ 256 MB SDRAM)
Dealer optionsInternal rewinding kit (Max. 6” OD); Peel-off kit
User optionsBluetooth module (serial interface); 802.11 b/g/n Wireless module (serial interface); Regular cutter (full cut guillotine cutter); Heavy duty cutter (rotary cutter); Care label cutter (rotary cutter); KP-200 Plus keyboard display unit; KU-007 Plus programmable smart keyboard

From the TSC datasheet. Specifications can change with the model version. Warranty terms for India are confirmed on your quotation.

Description

TSC TTP-2410MT Barcode Label Printer (TTP-2410MT Series) - 203 dpi direct thermal and thermal transfer printer, 4.09" print width. Industrial with touch panel. Supplied with installation, labels, ribbons and service support by Mindware, New Delhi.

Features

  • Print method: Direct thermal and thermal transfer
  • Resolution: 203 dpi
  • Max print width: 4.09"
  • Series: TTP-2410MT Series
  • Ideal for: Industrial with touch panel
