TSC

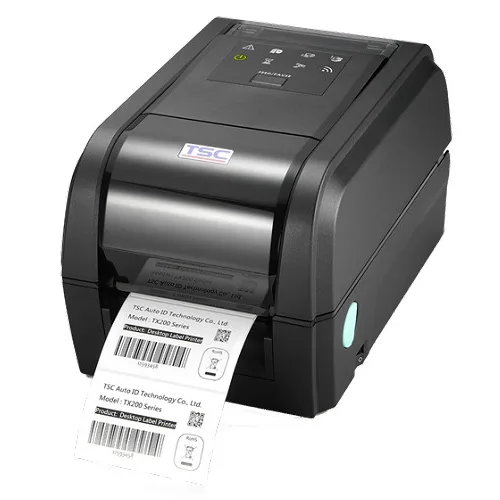

TSC TX300 Barcode Label Printer

Model: TSC TX300 Category: TSC Desktop Printers

TSC TX300 Barcode Label Printer (TX200 Series) - 300 dpi thermal transfer printer, 4.25" print width. Advanced desktop, 300 dpi. Supplied with installation, labels, ribbons and service support by Mindware, New Delhi.

Best price on request

Send the availability form. If the product is in stock, we confirm our best price and bill it with a GST invoice.

WhatsApp Call
Download datasheet (PDF)
  • Genuine products with warranty support
  • Installation & service centre in Dwarka, Delhi
  • Pan-India delivery, GST invoice
Labels & ribbons for this printerFrom Mindware - any size, best prices

Full Specifications

Printing
Resolution12 dots/mm (300 DPI)
Print methodThermal Transfer & Direct Thermal
Max. print speed152 mm (6”)/second
Max. print width106 mm (4.17”)
Max. print length11,430 mm (450”)
Hardware
Processor32-bit RISC CPU
Memory128 MB Flash memory; 128 MB SDRAM; microSD card reader for Flash memory expansion, up to 32 GB
SensorsTransmissive gap sensor; Black mark reflective sensor (position adjustable); Ribbon encode sensor; Head open sensor
Controls and display1 power switch; 1 feed/pause button; LED panel with 8 big icons
Real-time clockFactory Option
EnclosureClamshell with double-walled plastic
Connectivity
InterfacesUSB 2.0; RS-232; Internal Ethernet, 10/100 Mbps; USB Host; Centronics (factory option); External Bluetooth (user option); Slot-in 802.11 a/b/g/n wireless (dealer option)
Labels and media
Label roll capacity127 mm (5”) OD
Media typeContinuous, die-cut, black mark, fan-fold, notch (outside wound)
Media width19 ~112 mm (0.75” ~ 4.4”)
Media thickness0.055 ~ 0.254 mm (2.17 ~ 10 mil)
Media core diameter25.4 ~ 38.1 mm (1” ~ 1.5”)
Label length3 ~ 11,430 mm (0.1” ~ 450”)
Ribbon
Ribbon capacity300 m long, max. OD 67 mm, 1” core (ink coated outside)
Ribbon width40 mm ~ 110 mm (1.6” ~ 4.3”)
Software and fonts
Printer languagesTSPL-EZ™ (Compatible to EPL, ZPL, ZPL II)
Internal fonts8 alpha-numeric bitmap fonts; Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Barcodes1D bar code Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS; 2D bar code TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode)
Font and barcode rotation0, 90, 180, 270 degree
Size and power
Dimensions226 mm (W) x 198 mm (H) x 332 mm (D); 8.90” (W) x 7.80” (H) x 13.07” (D)
Weight3.75 kg (8.27 lbs)
Power supplyExternal universal switching power supply; Input: AC 100-240V, 2.5A, 50-60Hz; Output: DC 24V, 3.75A, 90W
Environment and compliance
Operating environmentOperation: 5 ~ 40°C, 25 ~ 85% non-condensing; Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulationFCC Class B, CE Class B, RCM, UL, cUL, TÜV/Safety, CCC, BIS, EAC, ENERGY STAR®
Manufacturer warrantyPrinter: 2 years; Print head: 25 km (1 million inches) or 12 months which comes first; Platen: 50 km (2 million inches) or 12 months which comes first
Options
Factory optionsCentronics parallel interface; Real time clock; 3.5” color TFT display (includes real time clock); Ribbon end sensor
Dealer optionsPeel-off module; Guillotine cutter (full cut); 802.11 a/b/g/n wireless module (slot-in)
User optionsBluetooth module (serial interface); External label roll mount; KP-200 Plus keyboard display unit; KU-007 Plus programmable smart keyboard

From the TSC datasheet. Specifications can change with the model version. Warranty terms for India are confirmed on your quotation.

Description

TSC TX300 Barcode Label Printer (TX200 Series) - 300 dpi thermal transfer printer, 4.25" print width. Advanced desktop, 300 dpi. Supplied with installation, labels, ribbons and service support by Mindware, New Delhi.

Features

  • Print method: Thermal transfer
  • Resolution: 300 dpi
  • Max print width: 4.25"
  • Series: TX200 Series
  • Ideal for: Advanced desktop, 300 dpi

Check availability of TSC TX300 Barcode Label Printer

Share the quantity you need. If it is in stock, we reply with our best price within one working day and bill it.
